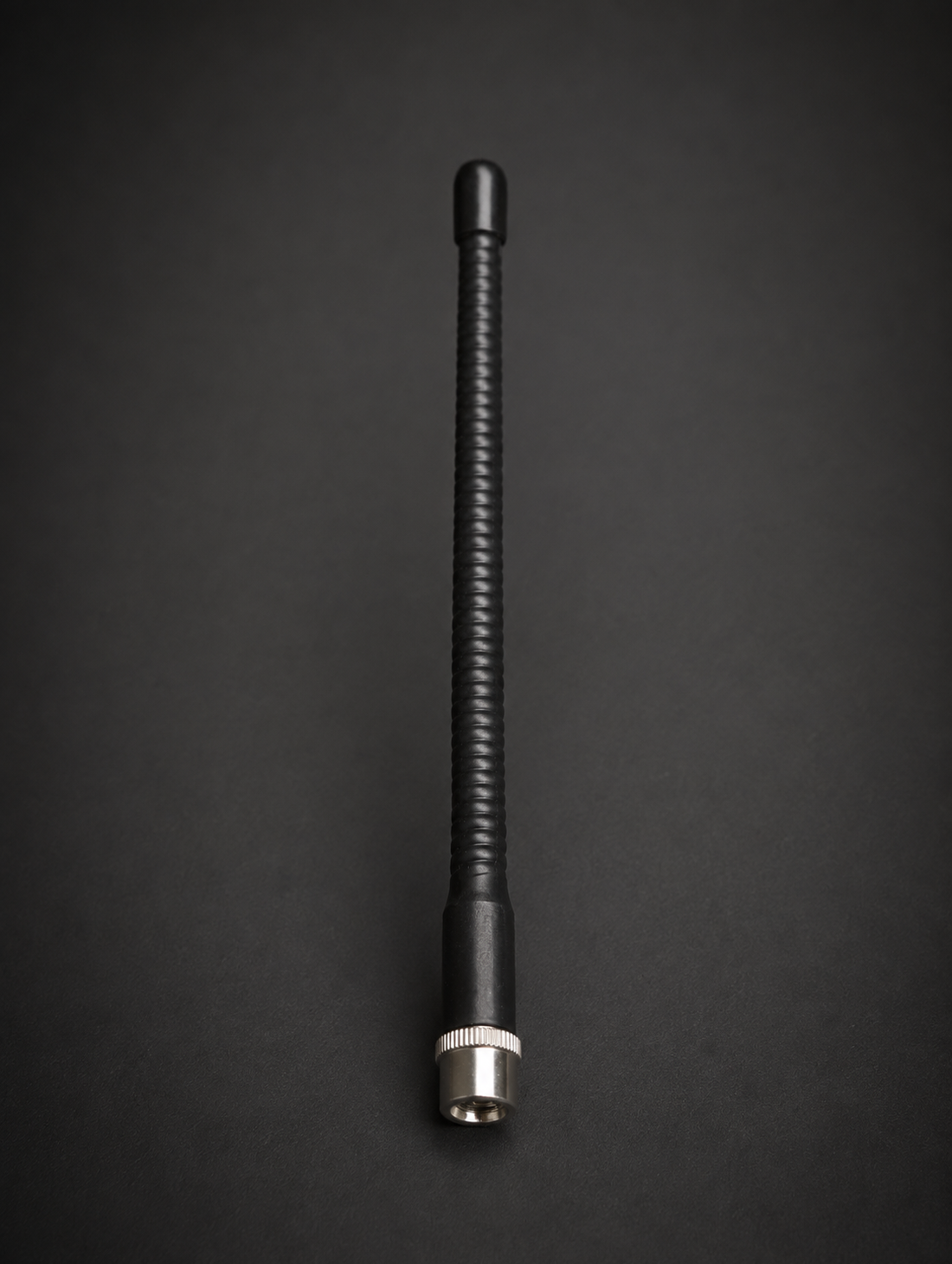

Designed by Stellar RF Technology, this SMA-J VHF 155 MHz Handheld Antenna features a deep-recess connector design engineered to fit specific handheld radio housings where additional connector insertion depth is required. The extended SMA-J interface helps provide a secure, properly seated connection with compatible radio models while maintaining dependable RF performance. Its flexible, rugged whip construction is suited for portable field use, and custom frequency tuning and connector depth options are available to match specific radio platforms and communication requirements.
SMA-J Recess VHF 155 MHz
Key Feature

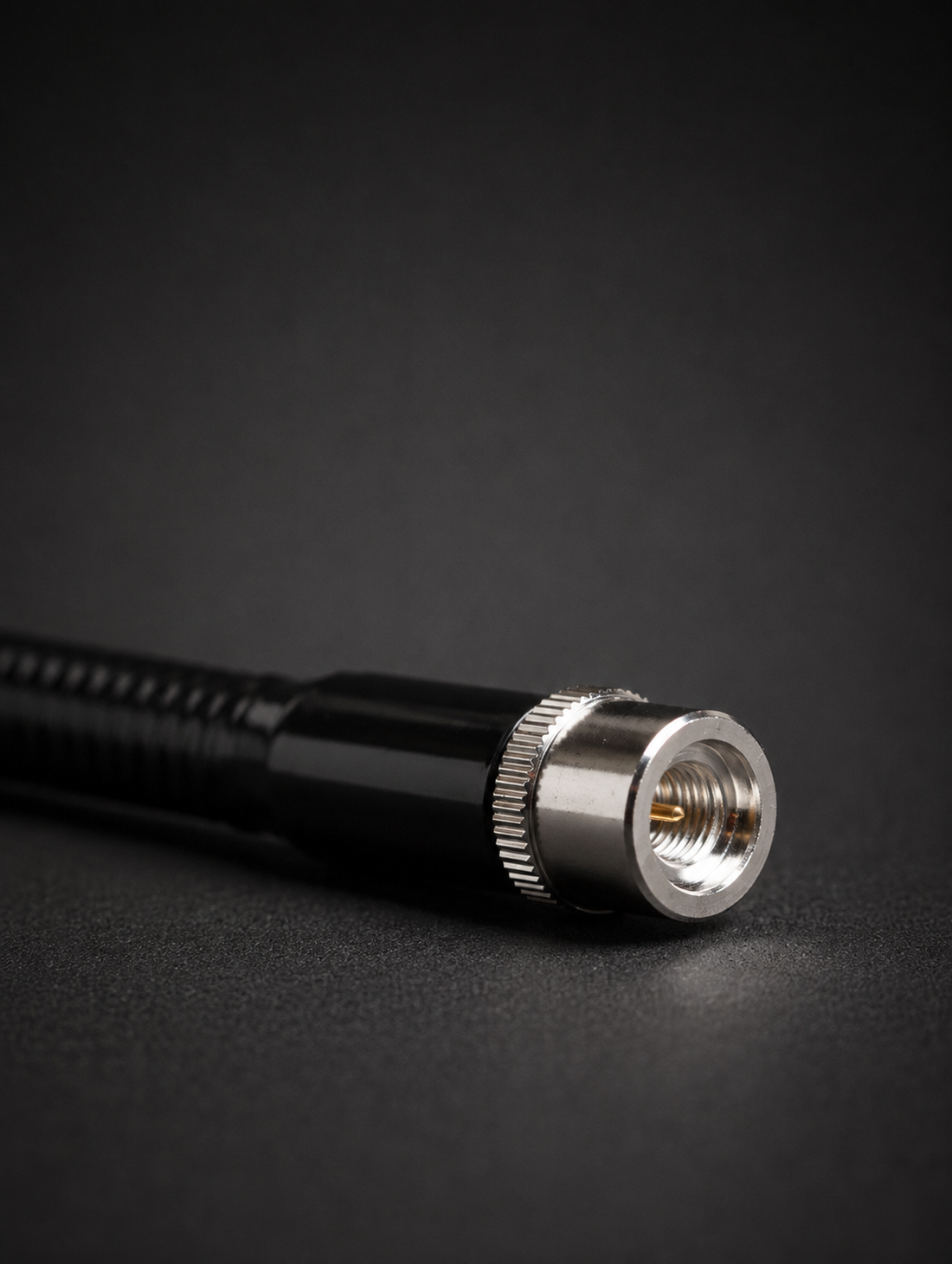

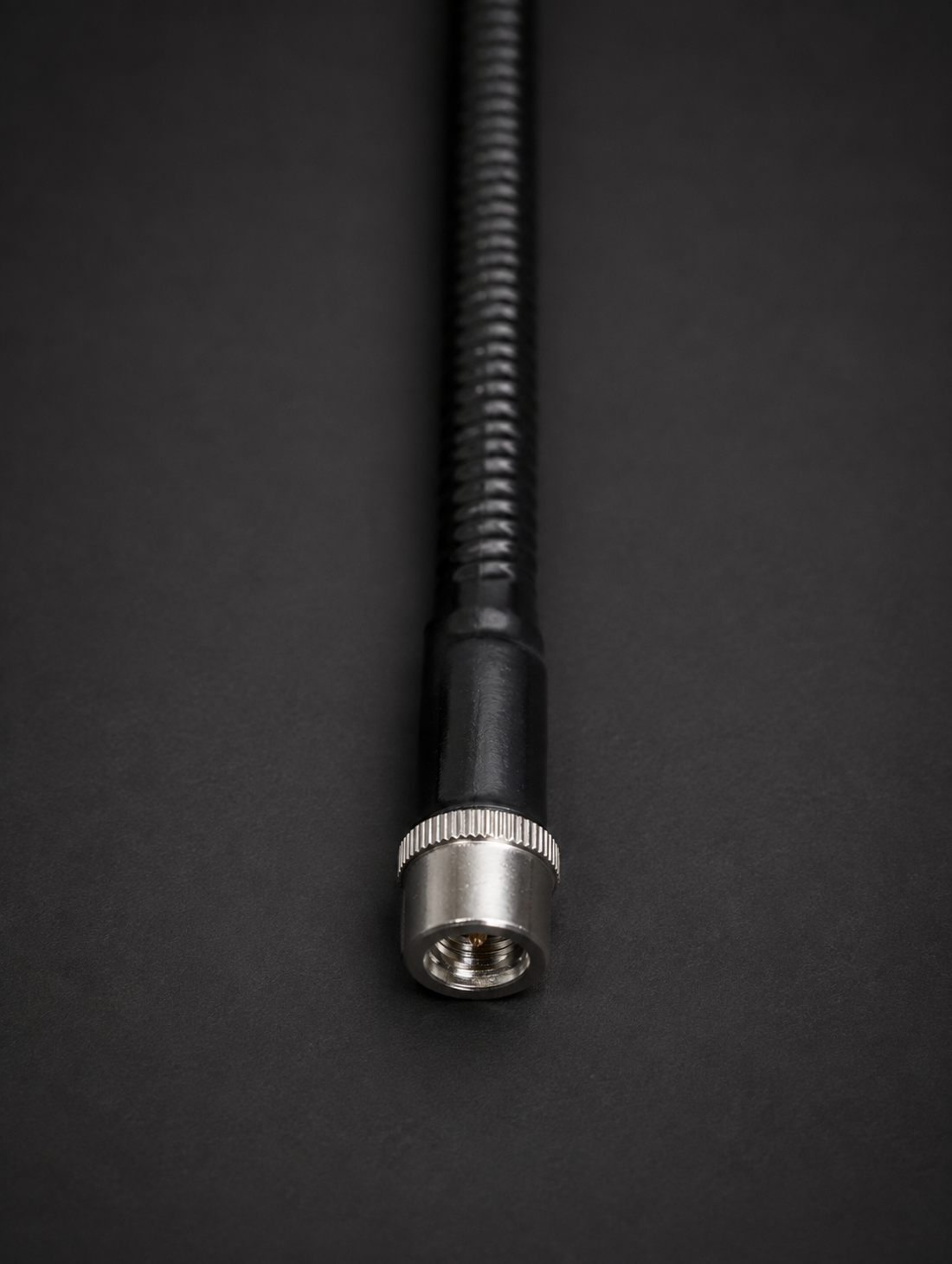

Depth Connector Design
VHF 155 MHz Tuned Handheld Antenna
Custom-Tuned VHF Frequencies Available
50 Ω Nominal Impedance

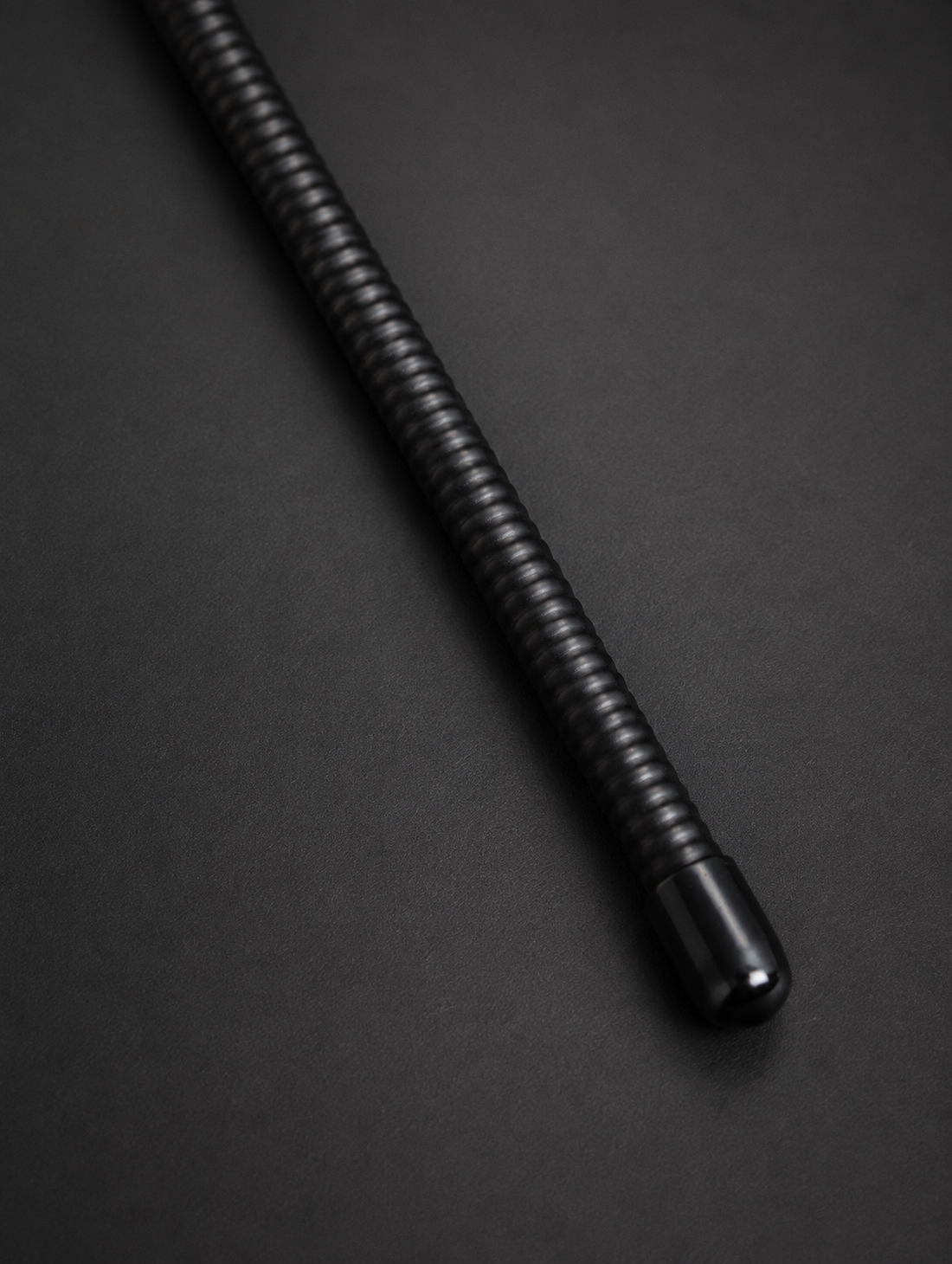

Flexible Whip Design for Portable Radio Use
SMA-J Connector for Compatible Handheld Radios
Durable Construction for Commercial, Public Safety & Amateur Radio Applications
Frequency Range:
VHF 136-174 MHz, custom-tuned frequencies available
Impedance:
50 Ohm
VSWR:
≤ 1.5:1 at tuned center frequency
Gain:
2 dBi
Maximum Power:
Supports up to 25 Watts
Polarization:
Vertical
Radiation Pattern:
360° Omnidirectional
Connector:
SMA-J
Antenna Length:
8 inch
Antenna Type:
Flexible VHF Handheld Whip Antenna
Construction:
Impact-resistant whip construction for portable radio use
Mounting:
Direct connection to compatible handheld two-way radios
Frequency Tuning:
Available with custom VHF frequency tuning to meet specific radio and communication requirements
Application:
Public Safety, Security, Commercial, Industrial, Amateur Radio & Portable Two-Way Communications
