The Stellar 66–175 MHz Wideband VHF Mobile Whip Antenna is designed for flexible mobile and vehicular communication across a broad VHF frequency range. With a slim whip design, 2.15 dBi gain, and up to 100 W power handling, it provides dependable omnidirectional performance for mobile radio installations. Its wideband coverage makes it suitable for commercial, industrial, fleet, public safety, and general VHF communication applications where reliable signal performance and a clean, compact antenna design are required.

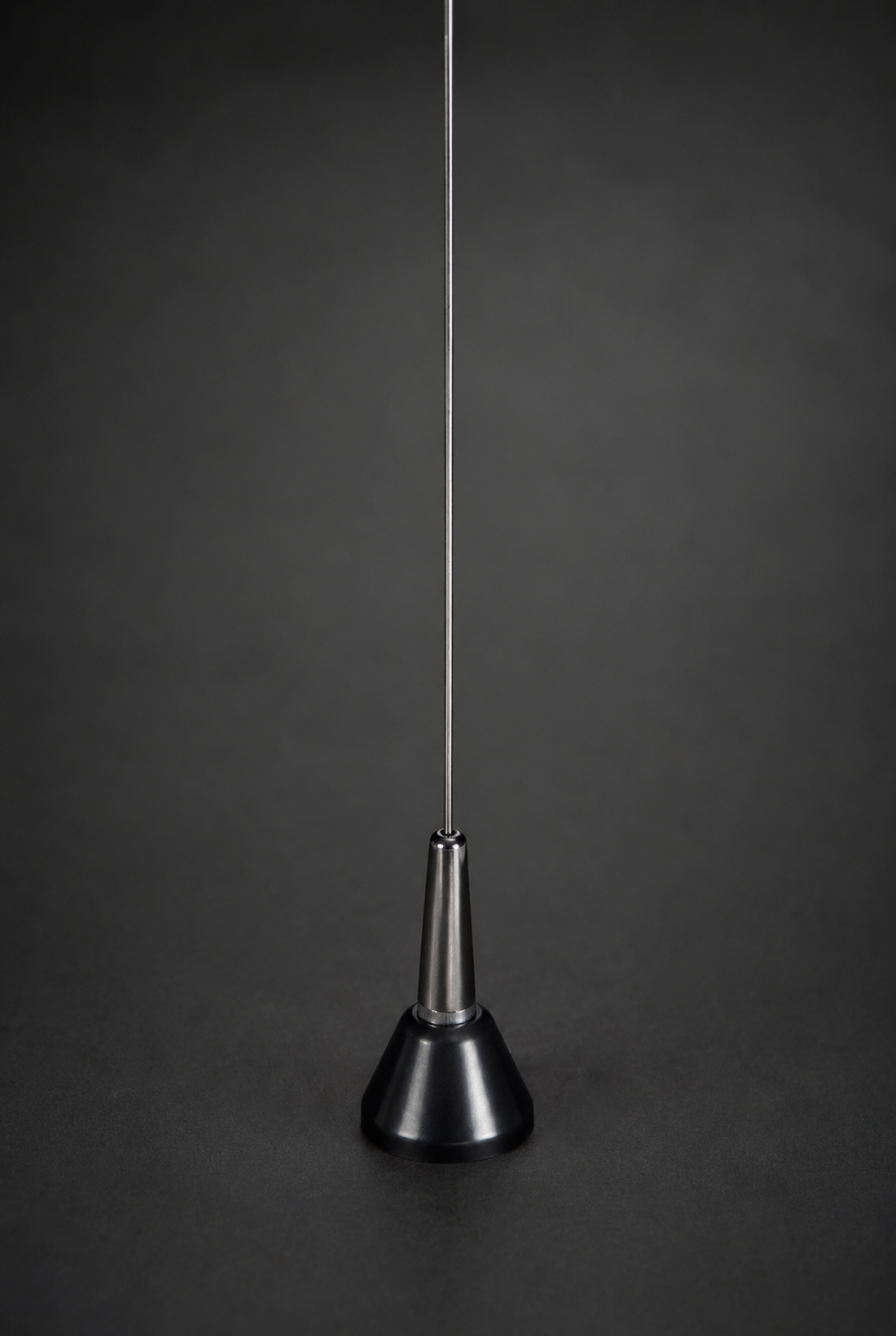

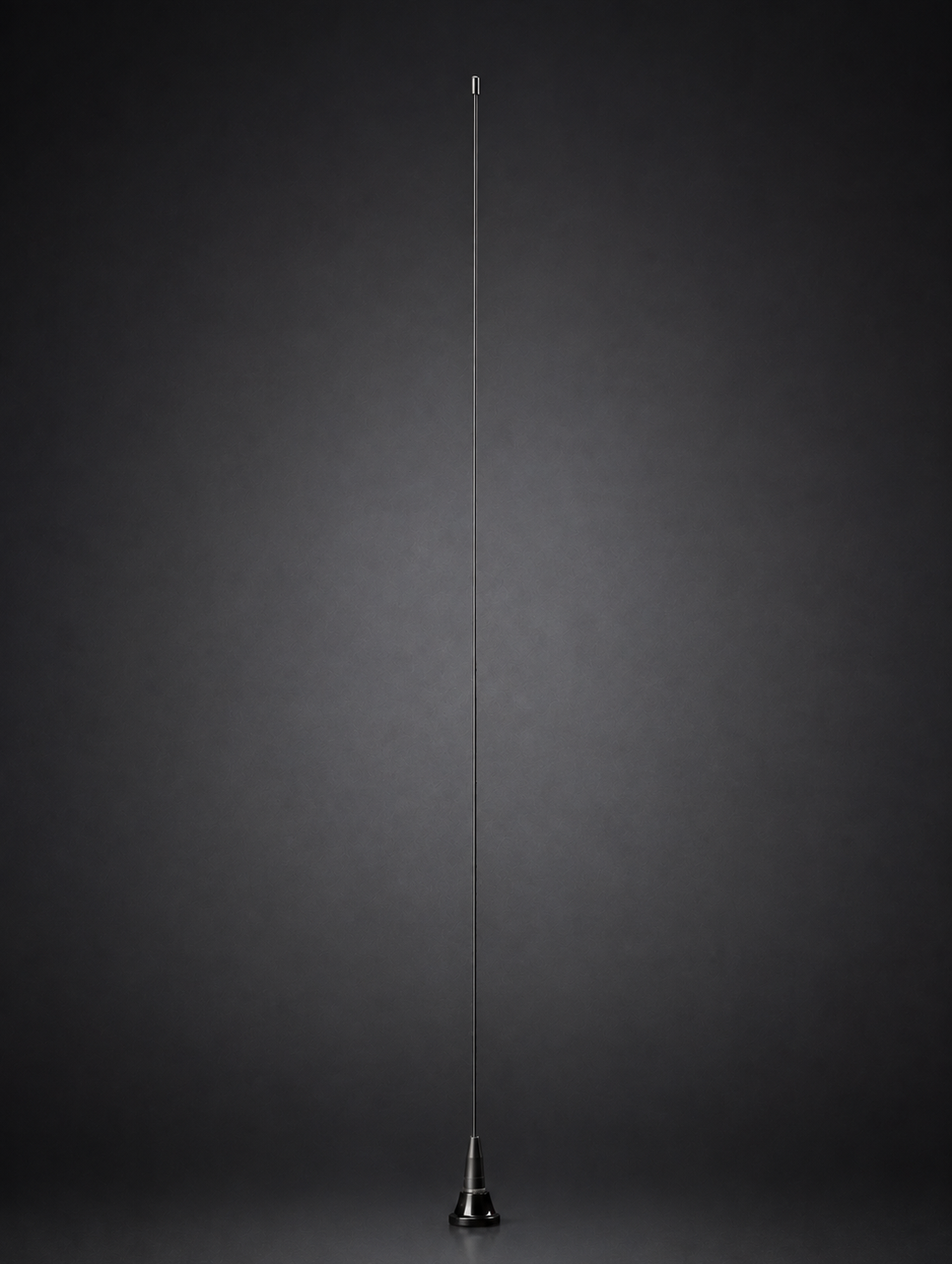

66–175 MHz Wideband VHF Mobile Whip Antenna
Key Feature
66–175 MHz VHF Wideband
2.15 dBi Gain / 100W Max Power
1.14 m / 45 in Whip Antenna
MJ Connector
1/4-Wave Mobile Whip Design
Application: Ideal for Fleet, Commercial, Industrial & Mobile VHF Radio
Frequency Range:
66–175 MHz
Impedance:
50 Ohm
VSWR:
1.5:1 at Tuned Frequency
Gain:
2.15 dBi
Polarization:
Vertical
Power Handling:
100 W
Horizontal Beam Width:
360°
Antenna Type:
1/4-Wave Mobile Whip Antenna
Color:
Black
Model Number: SRT-MWA66
Radiation Pattern:
Omnidirectional
Horizontal Beam Width:
360°
DC Ground:
DC Ground
Termination:
MJ
Length:
1.14 m / 45 in
Weight:
143 g
Operating Temperature:
-30°C to +60°C
