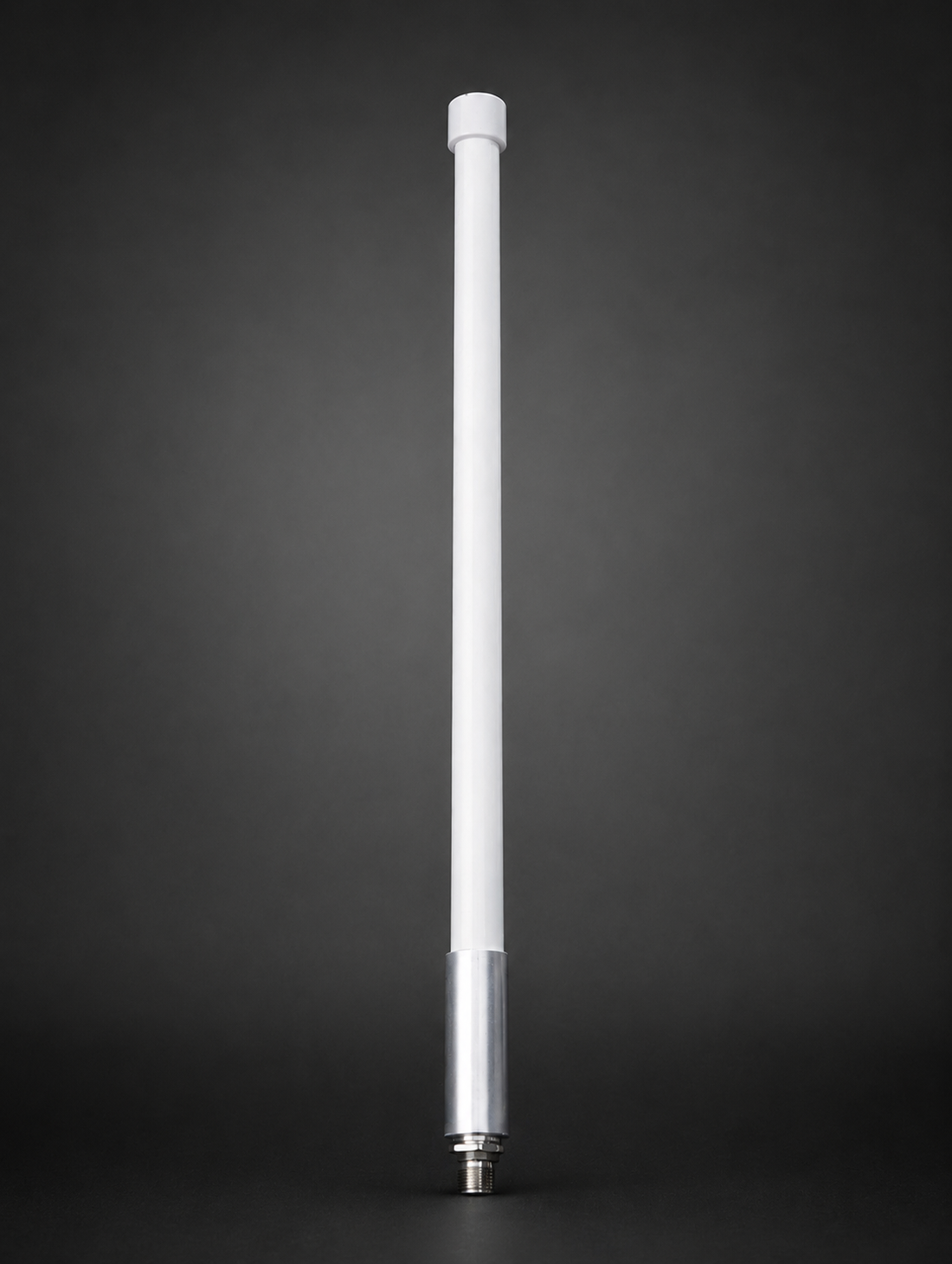

The STELLAR 3.5 GHz Fiberglass Antenna is designed for reliable high-speed wireless communication across CBRS, private LTE, 5G, fixed wireless, and industrial networking applications. Its durable fiberglass construction provides strong resistance to moisture, corrosion, vibration, and demanding outdoor conditions while supporting stable performance throughout the 3.5 GHz band. Ideal for enterprise networks, private wireless systems, remote monitoring, broadband access, and point-to-multipoint installations, this antenna combines dependable coverage with rugged professional-grade construction.
3.5 GHz CBRS / Private LTE / 5G Antenna
Key Feature
Frequency Range: 3400–3600 MHz
Gain: 12 dBi
Maximum Power: 100 W
Length: 550 mm / 21.7 in
Weight: 0.8 kg
Connector: N-K
Antenna Type: Fiberglass omnidirectional antenna
Application: 3.5 GHz CBRS, private LTE/5G, fixed wireless, industrial networking, point-to-multipoint, and base-station communication systems
Frequency Range:
3400–3600 MHz
Impedance:
50 Ohm
VSWR:
≤ 1.5:1 at the tuned/center frequency
Gain:
10 dBi
Polarization:
Vertical
Power Handling:
100 W
Horizontal Beam Width:
360°
Antenna Type:
Fiberglass Omnidirectional Antenna
Model Number: SRT-FA3500
Vertical Beam Width:
8°
DC Ground:
No DC Ground
Termination:
N-K
Length:
550 mm / 21.7 in
Weight:
0.8 kg
Construction:
Fiberglass Radome
Ferrule / Base:
Stainless hardware
Operating Temperature:
-40°C to +60°C
