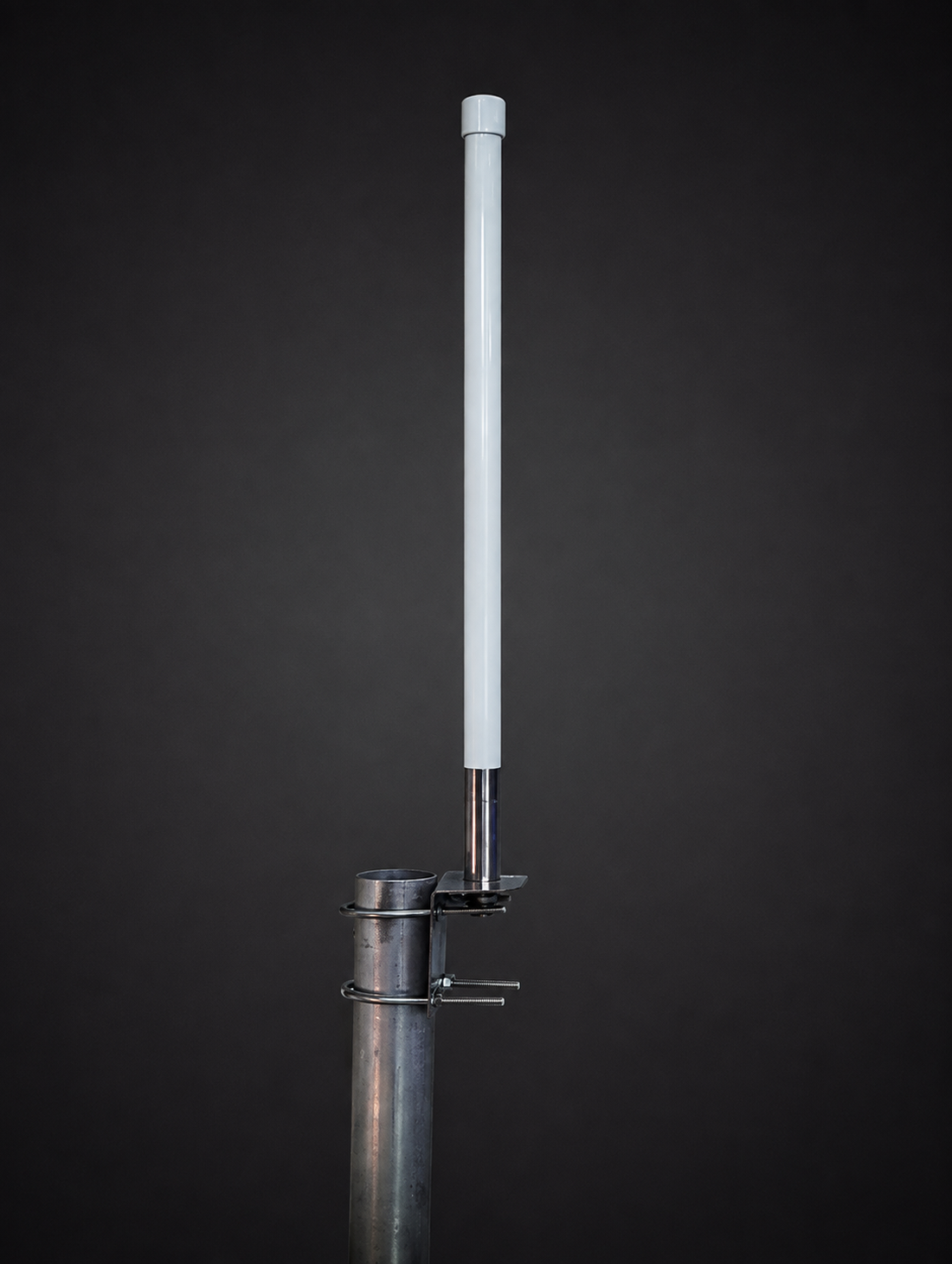

The STELLAR 5.8 GHz Fiberglass Antenna is designed for reliable high-speed wireless communication across Wi-Fi, point-to-point, point-to-multipoint, and industrial networking applications. Its durable fiberglass construction provides excellent resistance to moisture, corrosion, vibration, and harsh outdoor conditions while supporting stable performance throughout the 5.8 GHz band. Ideal for wireless bridges, outdoor access points, surveillance networks, remote data links, and fixed wireless systems, this antenna combines strong signal performance with rugged professional-grade construction.
5.8 GHz Wi-Fi & Omnidirectional Antenna
Key Feature
Frequency Range: 5750–5850 MHz
Gain: 12 dBi
Maximum Power: 100 W
Length: 400 mm / 15.7 in
Weight: 0.7 kg
Connector: N-Female
Antenna Type: Fiberglass omnidirectional antenna
Application: 5.8 GHz Wi-Fi, wireless bridges, point-to-point, point-to-multipoint, surveillance networks, and fixed wireless communication systems
Frequency Range:
5750–5850 MHz
Impedance:
50 Ohm
VSWR:
≤ 1.5:1 at the tuned/center frequency
Gain:
12 dBi
Polarization:
Vertical
Power Handling:
100 W
Horizontal Beam Width:
360°
Antenna Type:
Fiberglass Omnidirectional Antenna
Model Number: SRT-FA5800
Vertical Beam Width:
9°
DC Ground:
No DC Ground
Termination:
N-Female
Length:
400 mm / 15.7 in
Weight:
0.7 kg
Construction:
Fiberglass Radome
Ferrule / Base:
Stainless hardware
Operating Temperature:
-40°C to +60°C
