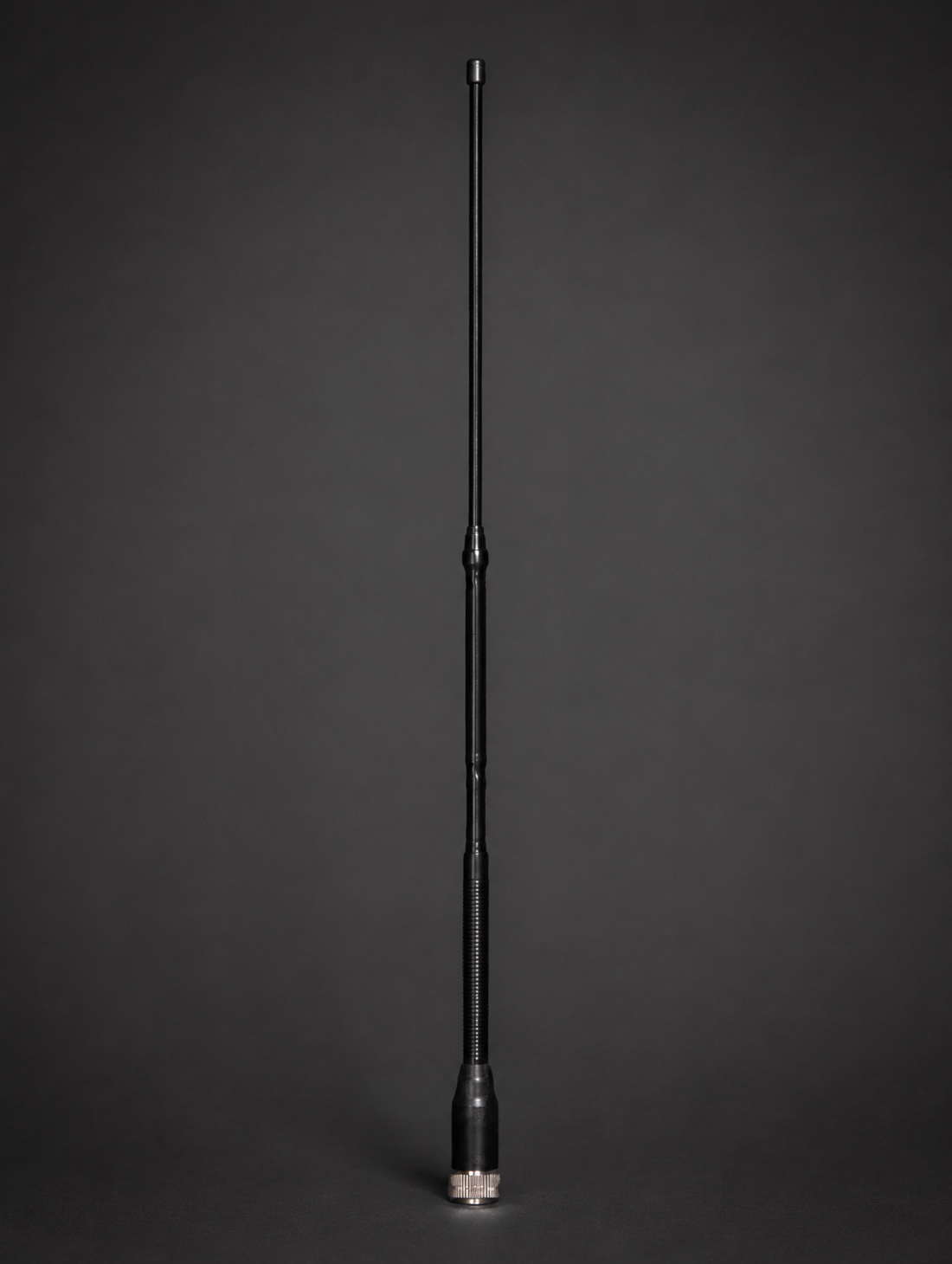

Designed by Stellar RF Technology, this SMA-J Flush HF 27 MHz Handheld Antenna combines a clean low-profile connector design with rugged construction for demanding portable-radio use. Its spring-loaded midsection provides added flexibility and helps resist breakage from bending, impact, and repeated movement, making it especially suitable for hunting, outdoor activities, field operations, and rough environments. The flush SMA-J interface provides a secure, integrated fit with compatible handheld radios, while custom frequency tuning is available to meet specific HF communication requirements.
SMA-J Flush HF 27 MHz Break-Resistant
Key Feature
Flush Connector Design

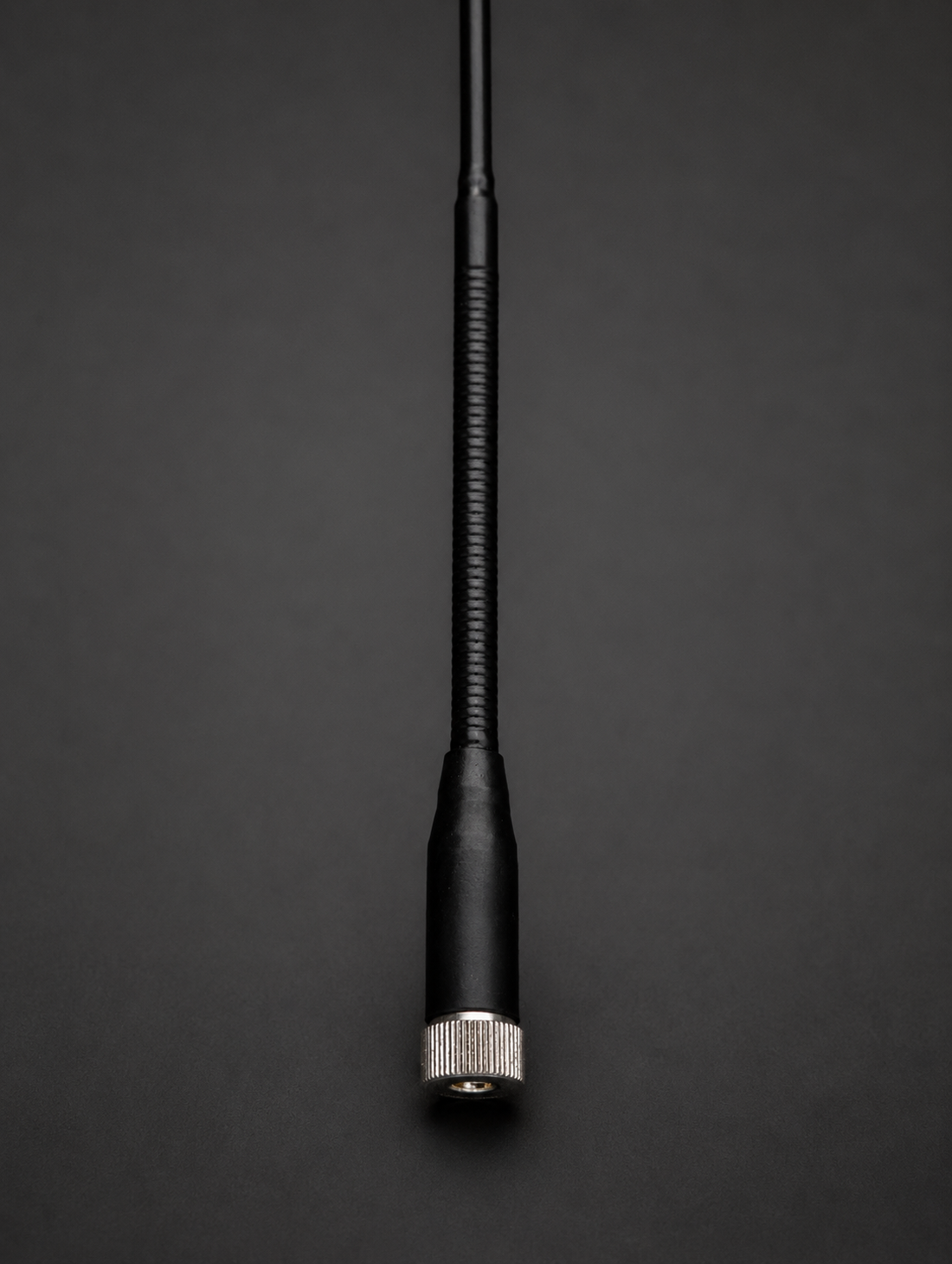

Spring-Loaded Midsection for Added Flexibility
Break-Resistant Design for Rugged Field Use
HF 27 MHz Tuned Handheld Antenna
Custom-Tuned HF Frequencies Available
50 Ω Nominal Impedance
Flexible Whip Design for Portable Radio Use
SMA-J Connector for Compatible Handheld Radios
Durable Construction for Commercial, Public Safety & Amateur Radio Applications
Frequency Range:
HF 27-39MHz, custom-tuned frequencies available
Impedance:
50 Ohm
VSWR:
≤ 1.5:1 at tuned center frequency
Gain:
2 dBi
Maximum Power:
Supports up to 25 Watts
Polarization:
Vertical
Radiation Pattern:
360° Omnidirectional
Connector:
SMA-J
Antenna Length:
20 inch
Antenna Type:
Flexible HF Handheld Whip Antenna
Construction:
Spring-Loaded Midsection Break-Resistant , impact-resistant whip construction for portable radio use
Mounting:
Direct connection to compatible handheld two-way radios
Frequency Tuning:
Available with custom HF frequency tuning to meet specific radio and communication requirements
Application:
Public Safety, Security, Commercial, Industrial, Amateur Radio & Portable Two-Way Communications
