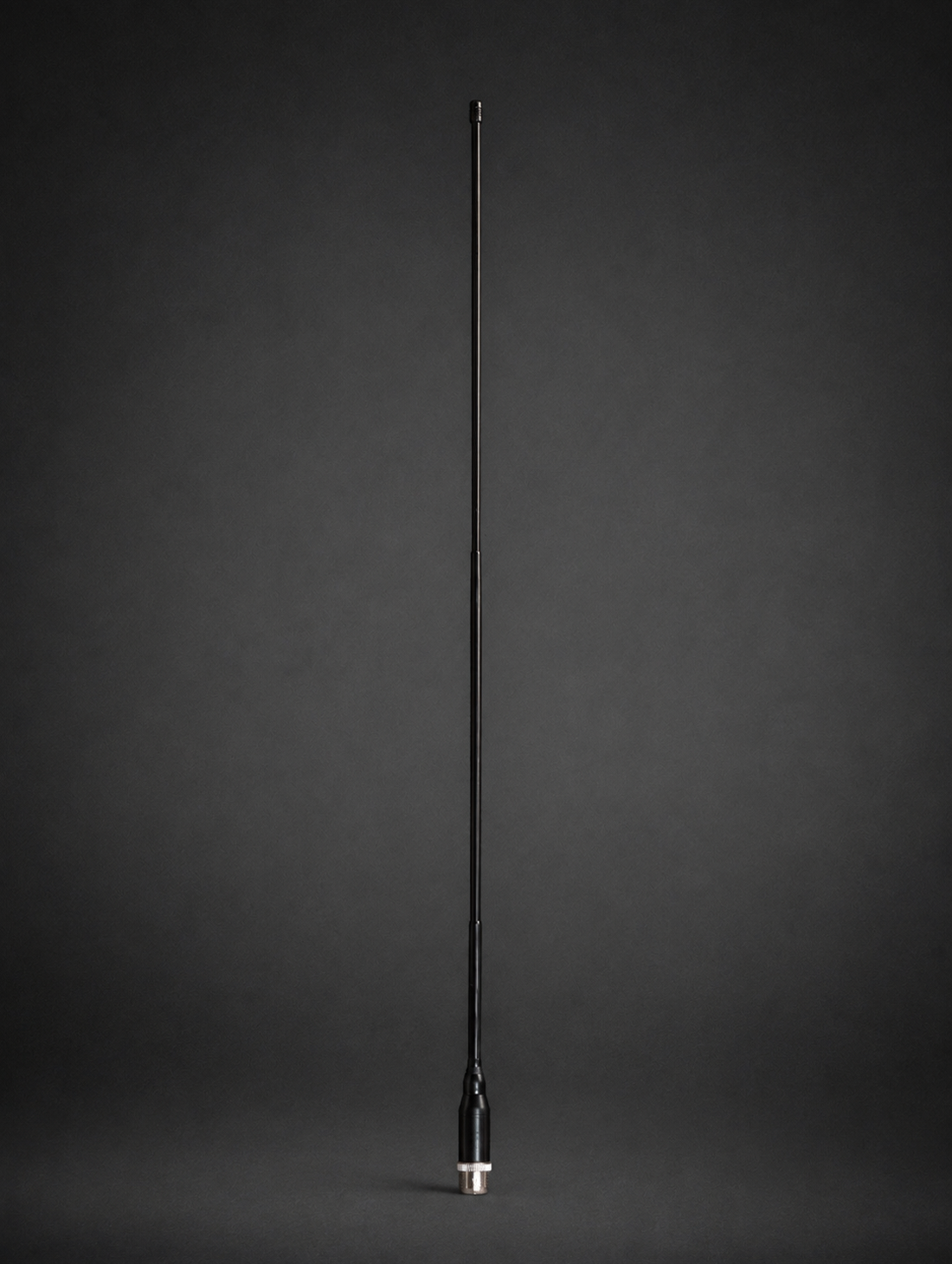

Designed by Stellar RF Technology for dependable VHF communication, this SMA-J VHF 140 MHz Handheld Antenna is built for compatible portable two-way radios and professional communication equipment. In addition to custom frequency tuning, Handheld Antenna features a deep-recess connector design engineered to fit specific handheld radio housings where additional connector insertion depth is required.. Its flexible whip construction is suited for everyday field use in commercial, industrial, and amateur radio applications.
SMA-J Recess VHF 140 MHz
Key Feature

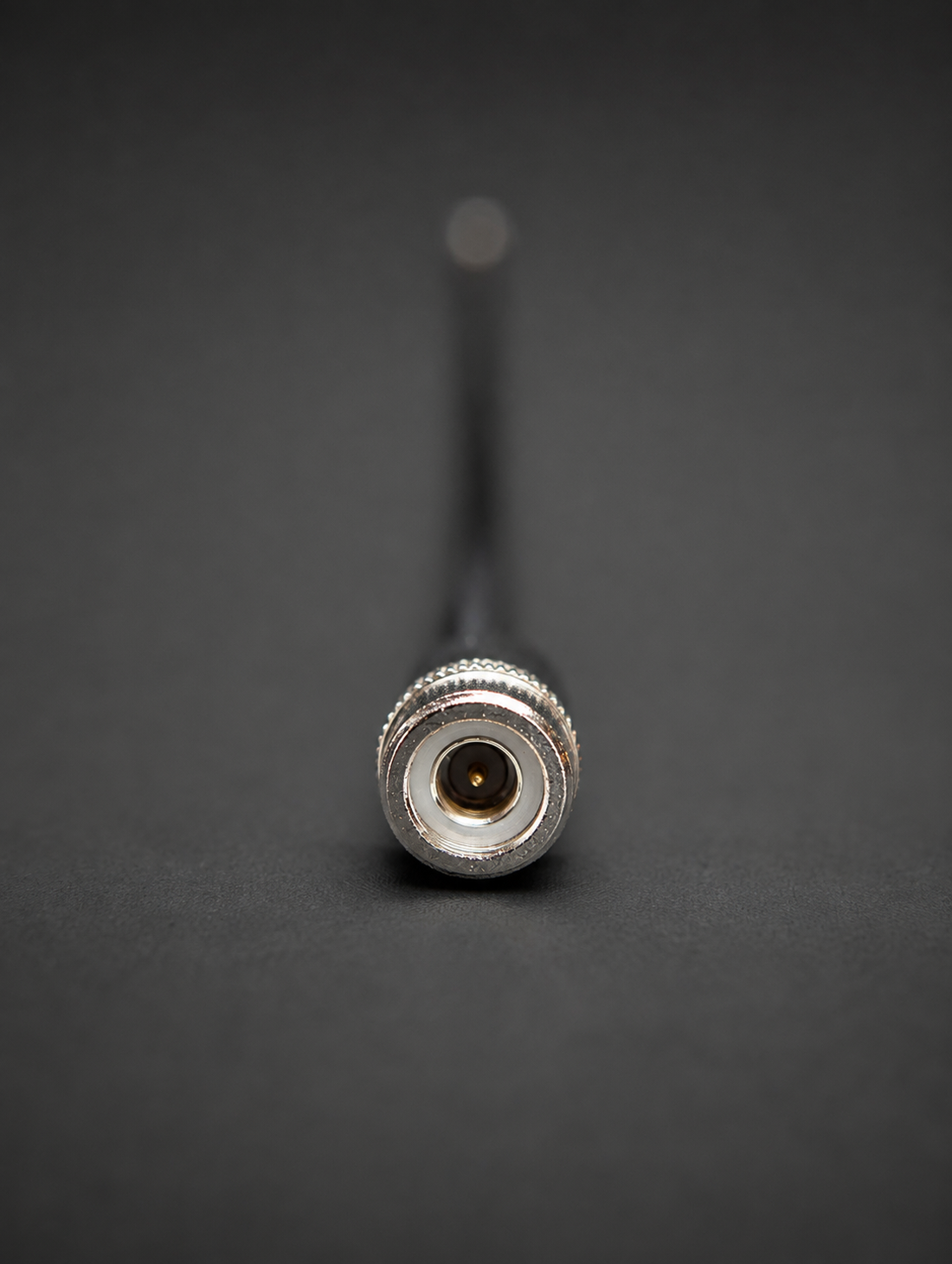

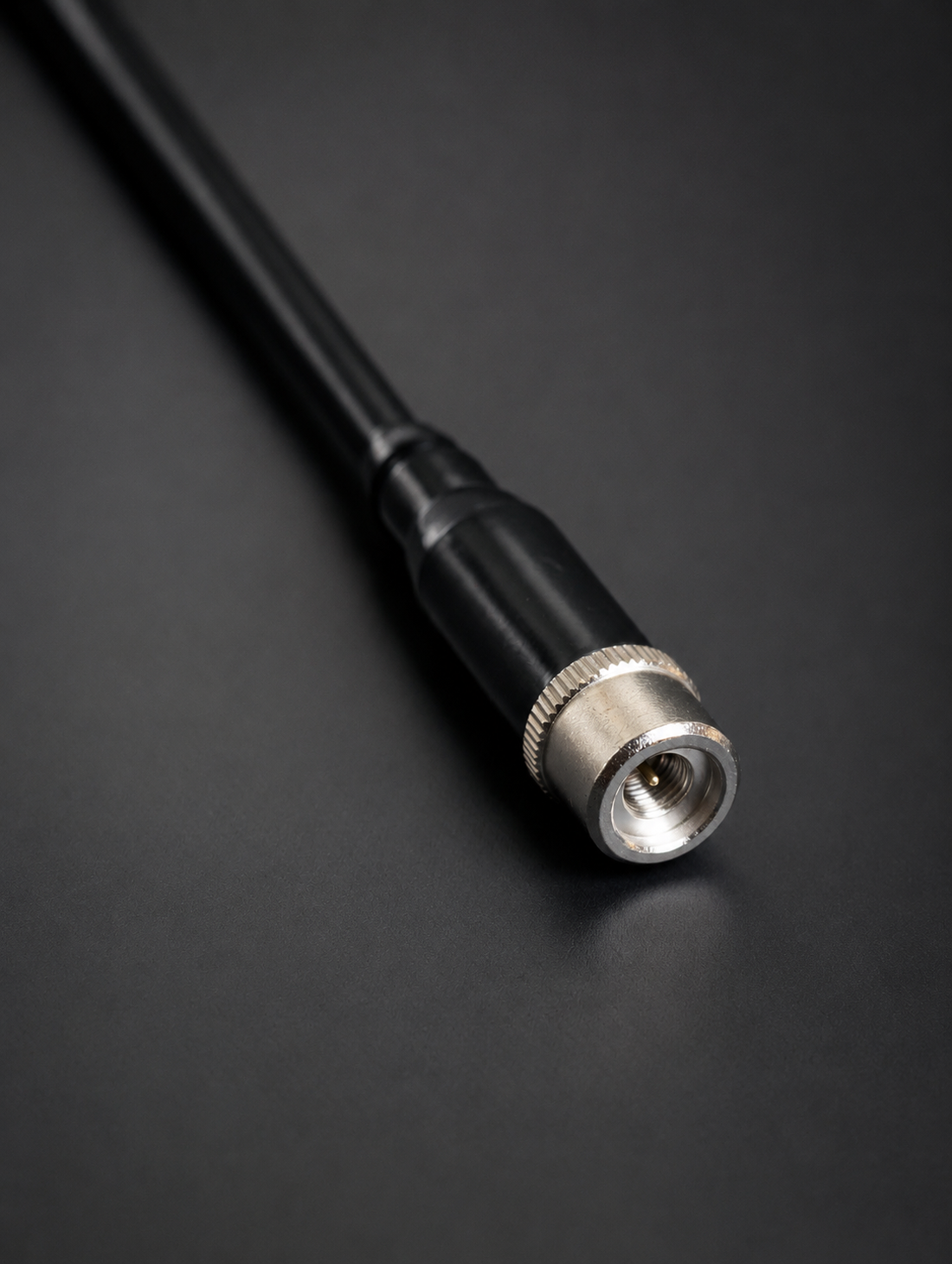

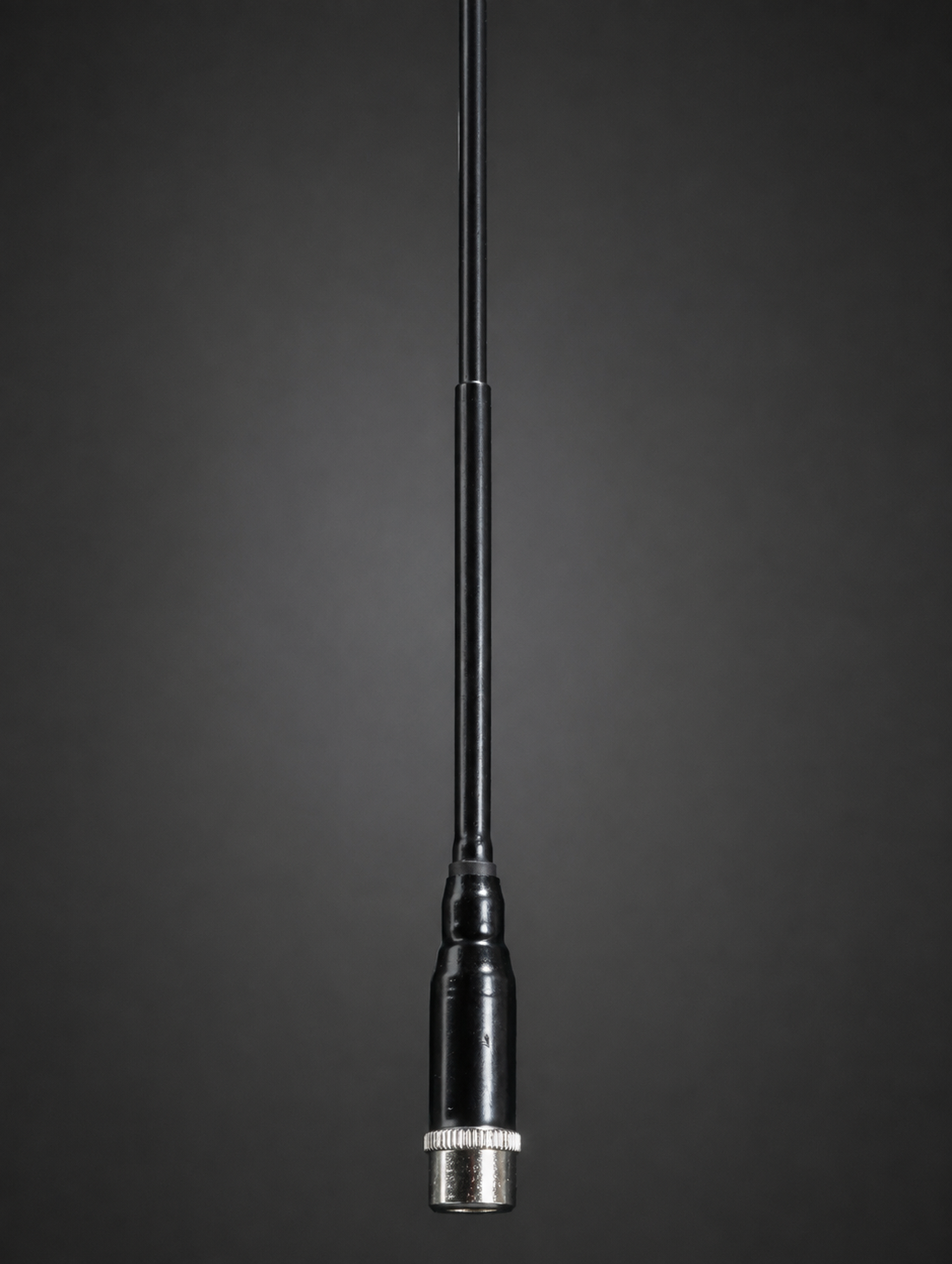

Recess Connector Design
VHF 140 MHz Tuned Handheld Antenna
Custom-Tuned VHF Frequencies Available
50 Ω Nominal Impedance
Flexible Whip Design for Portable Radio Use
SMA-J Connector for Compatible Handheld Radios
Durable Construction for Commercial, Amateur Radio Applications
Frequency Range:
VHF 136-174 MHz, custom-tuned frequencies available
Impedance:
50 Ohm
VSWR:
≤ 1.5:1 at tuned center frequency
Gain:
2.15 dBi
Maximum Power:
Supports up to 25 Watts
Polarization:
Vertical
Radiation Pattern:
360° Omnidirectional
Connector:
SMA-J
Antenna Length:
22 inch
Antenna Type:
Flexible VHF Handheld Whip Antenna
Construction:
Flexible, impact-resistant whip construction for portable radio use
Mounting:
Direct connection to compatible handheld two-way radios
Frequency Tuning:
Available with custom VHF frequency tuning to meet specific radio and communication requirements
Application:
Commercial, Industrial, Amateur Radio & Portable Two-Way Communications
