Designed by Stellar RF Technology for dependable VHF communication, this TNC-J VHF 140 MHz Handheld Antenna delivers reliable transmission and reception for compatible portable two-way radios. Its rugged flexible whip construction is built for everyday field use, while the TNC-J connector provides a secure threaded connection for demanding communication environments. Custom-tuned VHF frequencies are available, making the antenna suitable for commercial, industrial, amateur radio, and other professional portable radio applications.
TNC-J VHF 140 MHz
Key Feature
VHF 140 MHz Tuned Handheld Antenna
Custom-Tuned VHF Frequencies Available
50 Ω Nominal Impedance
Flexible Whip Design for Portable Radio Use
TNC-J Connector for Compatible Handheld Radios
Durable Construction for Commercial, Amateur Radio Applications
Frequency Range:
VHF 136-174 MHz, custom-tuned frequencies available
Impedance:
50 Ohm
VSWR:
≤ 1.5:1 at tuned center frequency
Gain:
2.15 dBi
Maximum Power:
Supports up to 25 Watts
Polarization:
Vertical
Radiation Pattern:
360° Omnidirectional

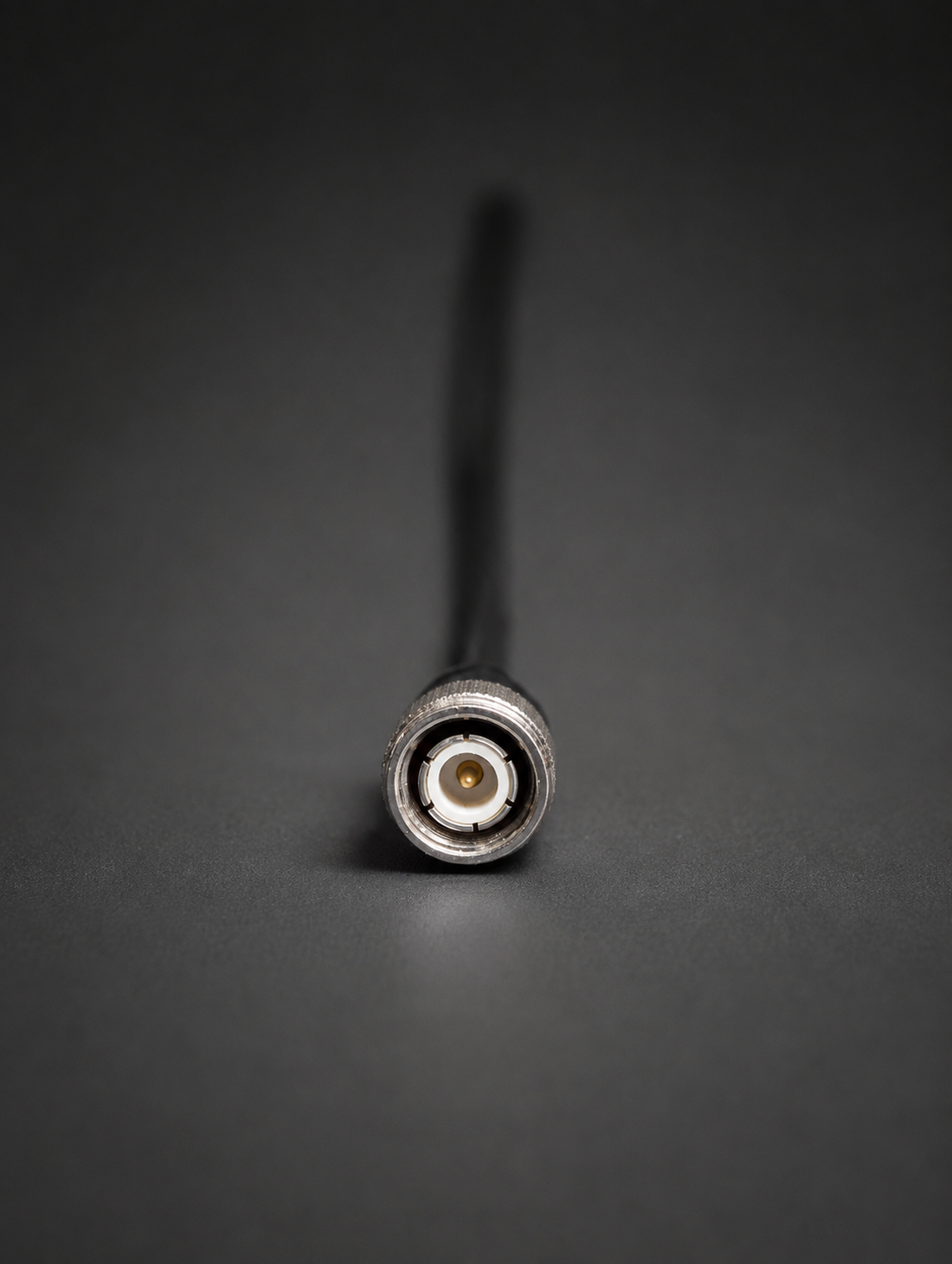

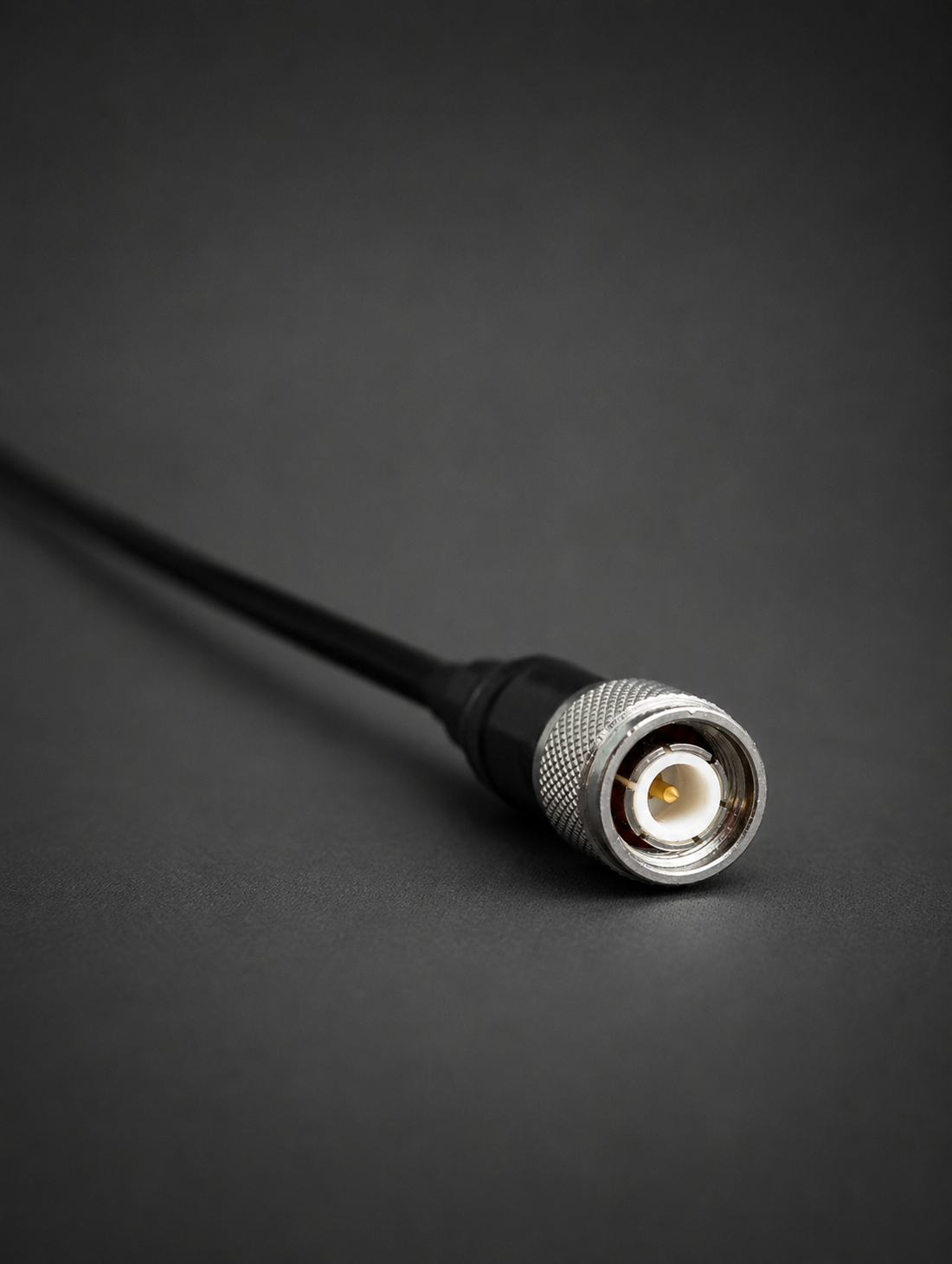

Connector:
SNC-J

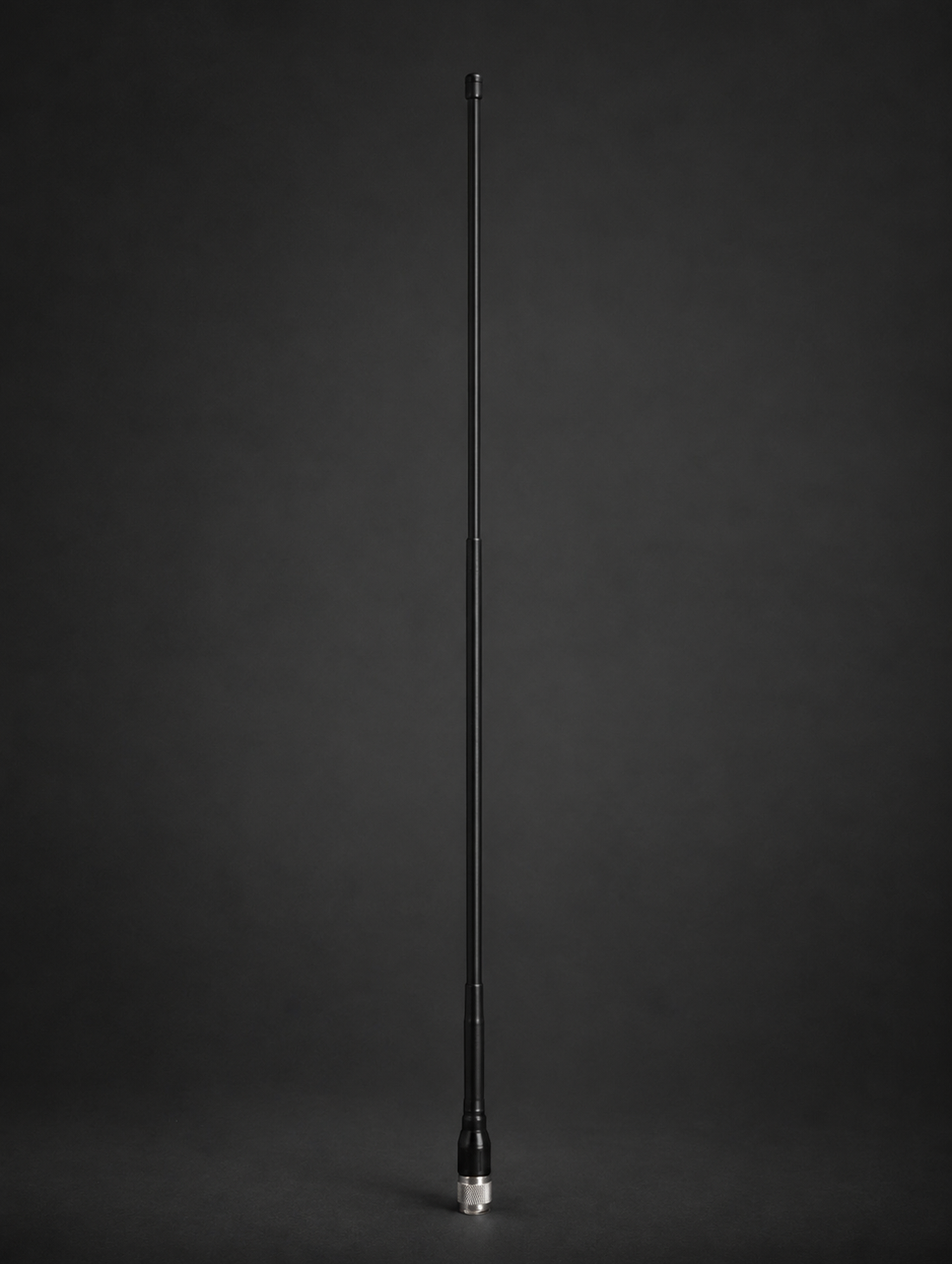

Antenna Length:
22 inch
Antenna Type:
Flexible VHF Handheld Whip Antenna
Construction:
Flexible, impact-resistant whip construction for portable radio use
Mounting:
Direct connection to compatible handheld two-way radios
Frequency Tuning:
Available with custom VHF frequency tuning to meet specific radio and communication requirements
Application:
Commercial, Industrial, Amateur Radio & Portable Two-Way Communications
