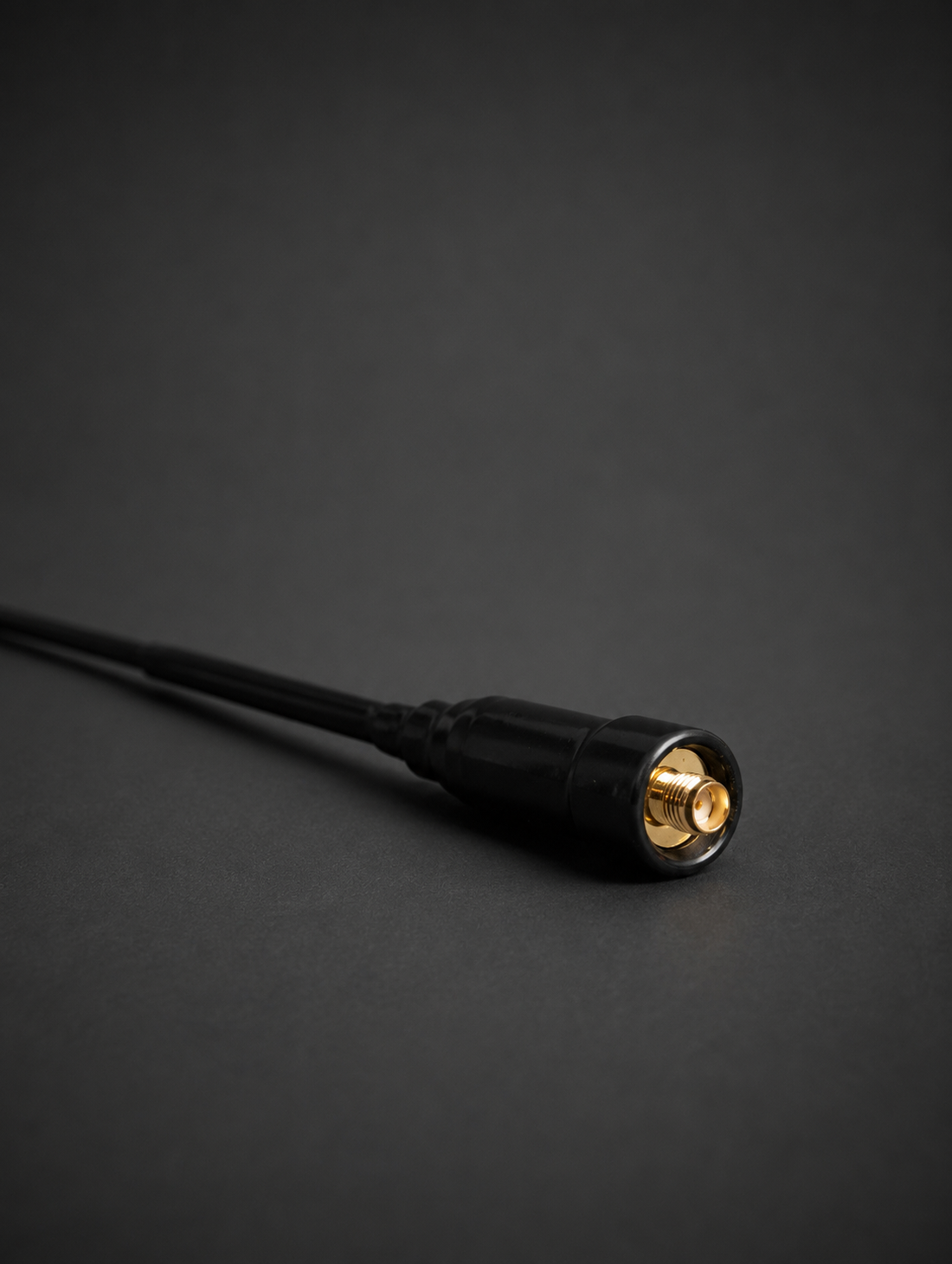

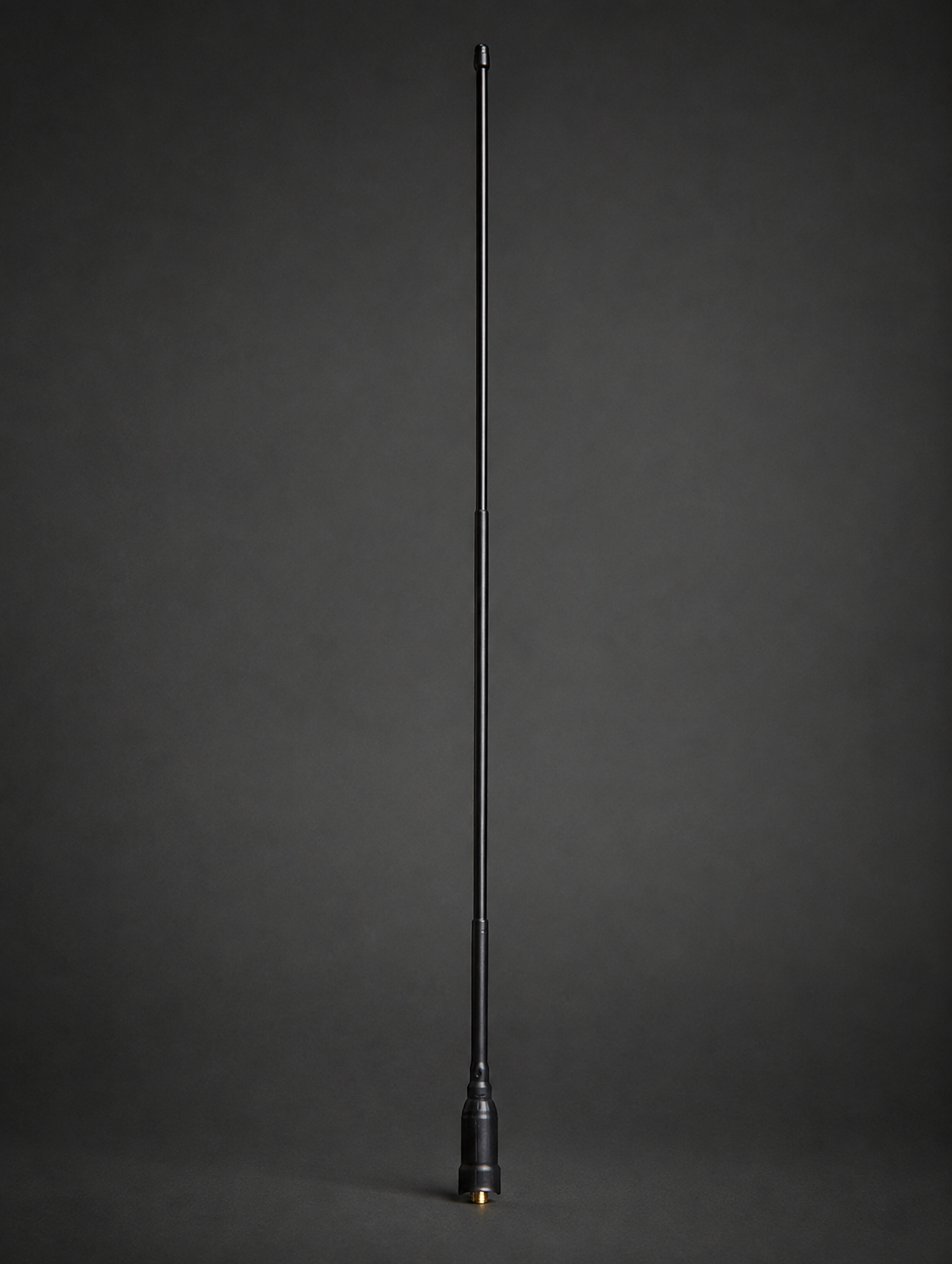

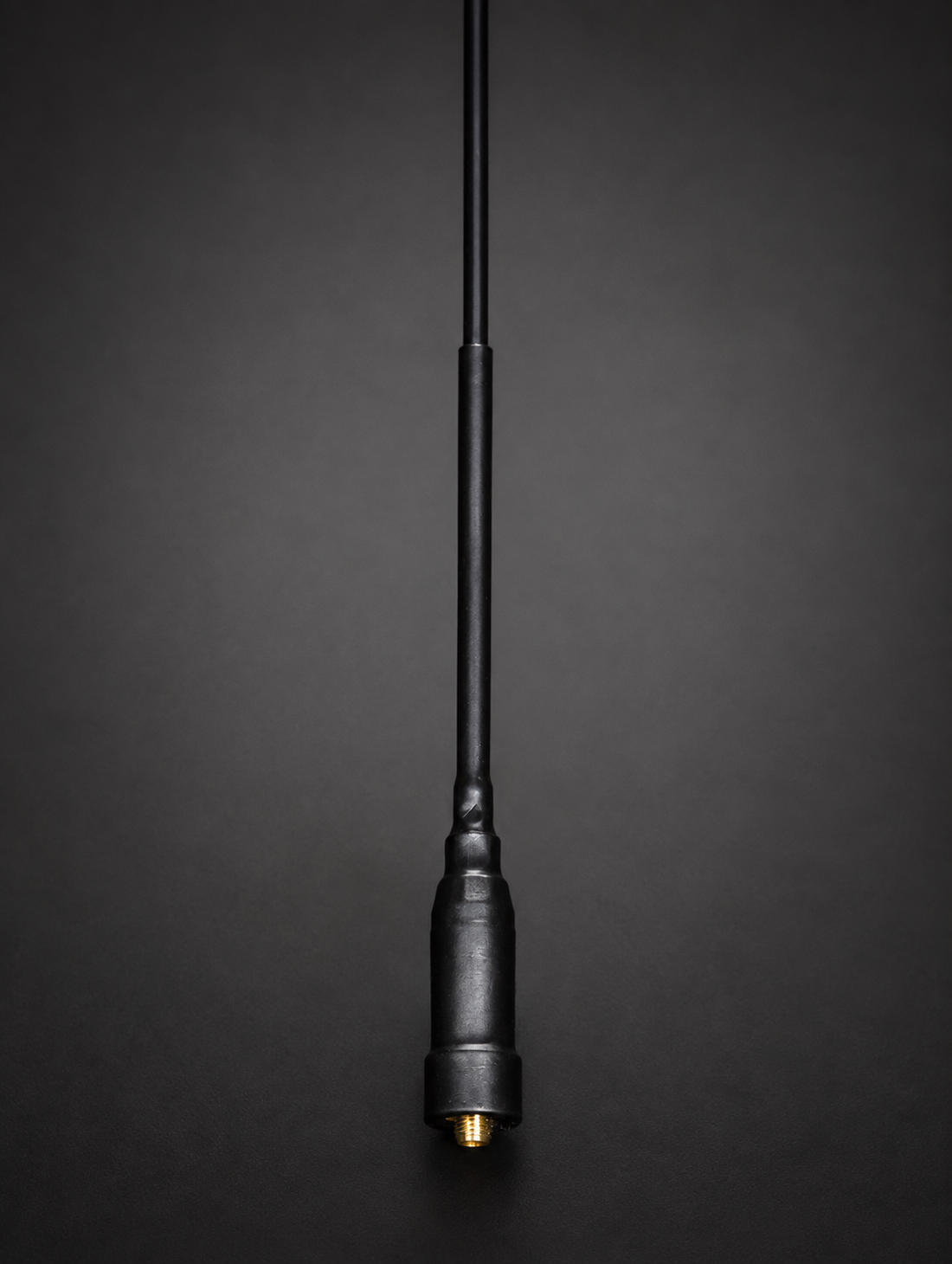

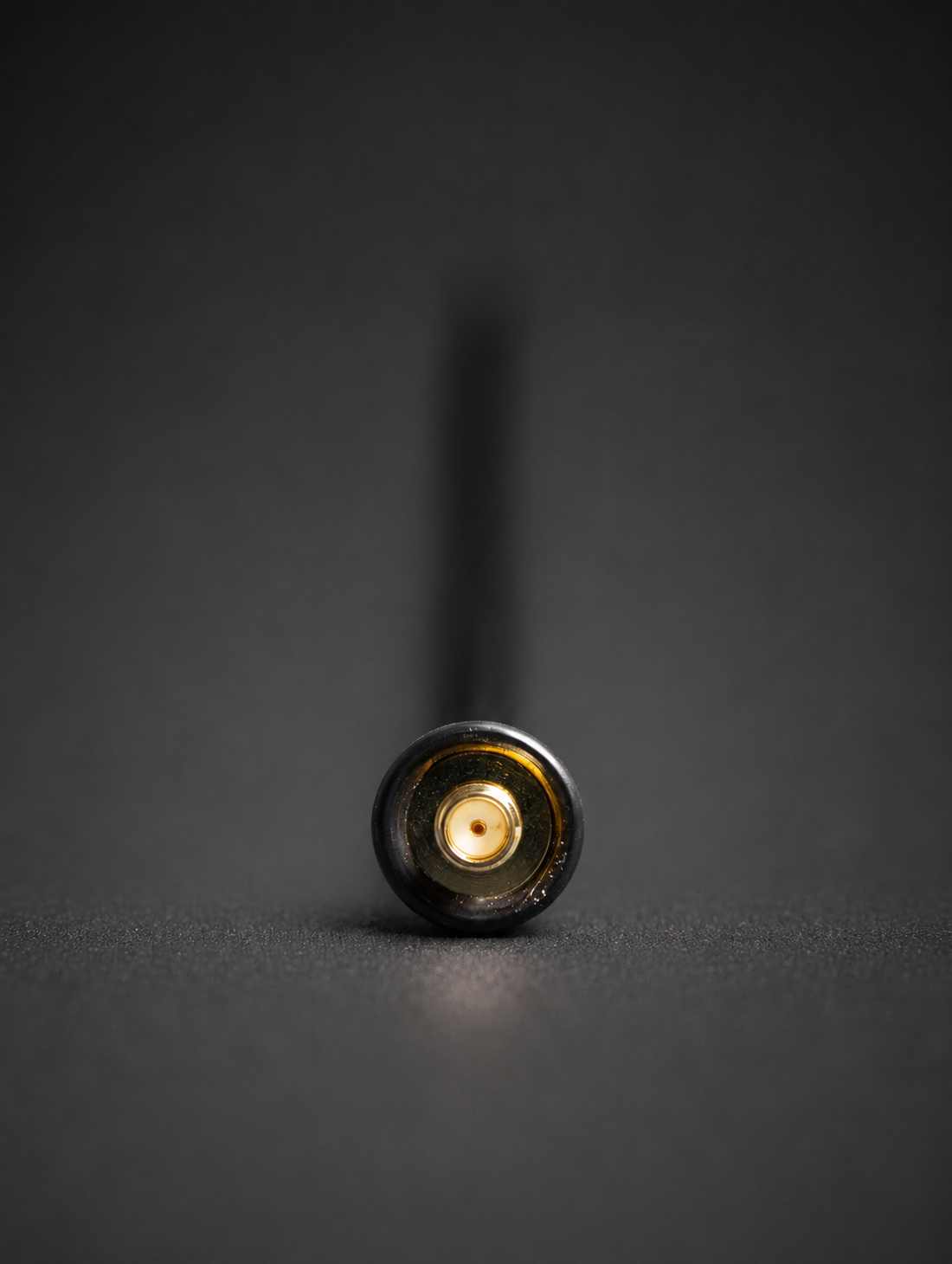

Designed by Stellar RF Technology, this SMA-K VHF 140 MHz Handheld Antenna provides reliable VHF performance in a compact, flexible design for portable two-way radios. The SMA-K interface is commonly used with many popular handheld radio platforms, including models such as the Baofeng UV-5R, BF-F8HP, and UV-82, as well as other compatible radios using the same SMA connection style. Custom frequency tuning is available to optimize performance for specific VHF operating requirements, making it a practical choice for commercial, public safety, industrial, security, and amateur radio applications.
SMA-K VHF 140 MHz
Key Feature
VHF 140 MHz Tuned Handheld Antenna
Custom-Tuned VHF Frequencies Available
50 Ω Nominal Impedance
Flexible Whip Design for Portable Radio Use
SMA-K Connector for Compatible Handheld Radios
Compatible with Popular Radios such as Baofeng UV-5R, UV-82 & BF-F8HP
Durable Construction for Commercial, Public Safety & Amateur Radio Applications
Frequency Range:
VHF 136-174 MHz, custom-tuned frequencies available
Impedance:
50 Ohm
VSWR:
≤ 1.5:1 at tuned center frequency
Gain:
2.15 dBi
Maximum Power:
Supports up to 25 Watts
Polarization:
Vertical
Radiation Pattern:
360° Omnidirectional
Connector:
SMA-K
Antenna Length:
22 inch
Antenna Type:
Flexible VHF Handheld Whip Antenna
Construction:
Flexible, impact-resistant whip construction for portable radio use
Mounting:
Direct connection to compatible handheld two-way radios
Frequency Tuning:
Available with custom VHF frequency tuning to meet specific radio and communication requirements
Application:
Public Safety, Security, Commercial, Industrial, Amateur Radio & Portable Two-Way Communications
